Google BigQuery

This page describes how to configure Google BigQuery credentials for use by Activations and why those permissions are needed.

Required permissions

Activations reads data from one or more tables (possibly across different schemata) in your data warehouse and publishes it to the corresponding objects in external systems, such as Salesforce. To limit the load on your database as well as external APIs, Activations computes a “diff” to determine changes between each update. In order to compute in-warehouse diffs, Activations creates and writes to a number of tables in the CENSUS dataset ('dataset' is what Google calls their equivalent of a 'schema' in standard database terminology).In order for the Activations connection to work correctly, the account you provide to Activations must have these permissions:

• Skip this step if working in read-only mode. Full admin access to all schema/tables within the CENSUS dataset (including creating and deleting tables, and reading and writing to all tables).
• Read-only access to any tables and views in any schemata that you would like Activations to publish to destination applications. Note: Your BigQuery connection region will need to match the specific table region.
• Permissions to create jobs in order to unload data.

BigQuery manages these permissions through their IAM Policy mechanism. Specifically, Activations uses three BigQuery policies by default:

• bigquery.dataViewer - Allows Activations read-only access to list the datasets and tables in the BigQuery instance, and to get data from the tables.
• bigquery.dataEditor - Allows Activations full-admin access to the tables in the CENSUS dataset. Skip this step if working in read-only mode.
• bigquery.jobUser - Allows Activations to create jobs to unload data.

Advanced Permissions

We definitely recommend you use the three permissions we specify when creating a new BigQuery connection. If you cannot grant these permissions at the project level, you can grant them finer grain. These are the specific permissions the Activations service account needs:

• bigquery.dataViewer access on the dataset or specific table you'd like Activations to read from.
  • If you are granting the bigquery.dataViewer permission at a more granular level than the project level you should still grant thebigquery.metadataViewer permission at the project level (Google Documentation). This will enable Activations to display your provisioned datasets within the UI for sync creation. Google requires permission to read metadata at the project level in order to list your datasets.
• bigquery.dataEditor access on the CENSUS dataset OR bigquery.dataOwner access on the CENSUS dataset if you would like to additionally grant Activations permissions to delete the CENSUS dataset. Skip this step if working in read-only mode.
• Finally, Activations service account needs project-level access with the bigquery.JobUser role or specifically the bigquery.jobs.create permission (via a custom role).

Providing a Service Account Key

You may also choose to create your own service account and provide Activations with the service account key JSON file. This is useful if you want to manage the lifecycle of the service account yourself. If you choose to provide a service account key, the service account must be granted the same permissions described above.

If you also plan to use Activations' dbt integration with BigQuery via a Service Account Key, you'll need to grant an additional role: roles/iam.serviceAccountTokenCreator. This permission is used by dbt to authenticate with BigQuery when compiling models. For more details, see dbt's documentation.

Configuring a new BigQuery connection

Because permissions are a bit unique on BigQuery so the process of creating a new connection to Activations requires a few extra steps.

1. Visit the Sources section on Activations, and press New Source, selecting BigQuery from the list.

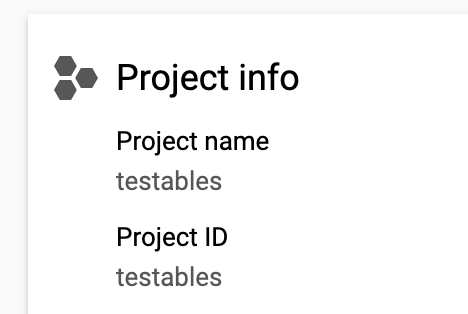

2. Activations will ask you to provide the Google Cloud Project ID that contains your BigQuery instance. You can find that on the Google Cloud Console in the Project Info section. If you have multiple Google Cloud projects, you'll need to first select the correct one with the project picker in the top right.



3. You will also need to specify in what location you want your Activations Dataset to be stored in. This locality will be used in the 1st and 2nd command below, and this dataset is where Activations will store its bookkeeping to make sure that only incremental changes are synced to your destinations.

4. (Optional) In order to connect to your BigQuery projects, Activations will create a service account and automatically manage its lifecycle and credentials - this is the recommended approach for most users. However, if you would prefer to have Activations to use a service account that you own (instead of our automatically-managed account) to connect to BigQuery, you may provide its service account key JSON file here.

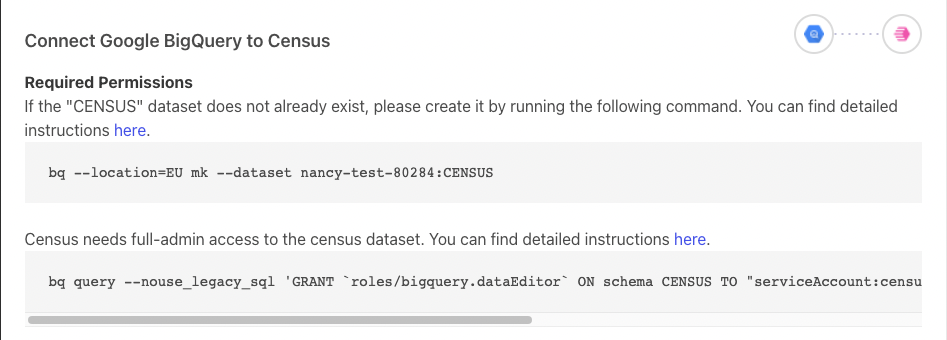

5. Skip this step if working in read-only mode. Once you've provided Activations with your Project ID, Activations will automatically generate a new Role Account we'll use to communicate with your BigQuery and provide you with one command to create the CENSUS dataset and three copy and paste-able commands you can use to grant permissions for this account on this project. The second command grants dataEditor on the newly created CENSUS dataset.

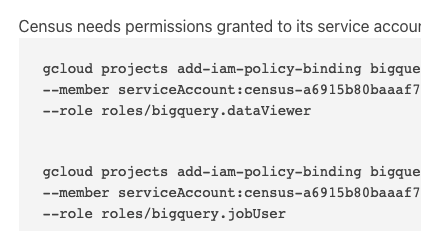

The third command grants dataViewer to the Activations serviceAccount, and the fourth command grants jobUser to the Activations serviceAccount. Both of these are executed at the level of the project to which you are giving access to Activations to give visibility to.

5. Once you've run all the commands, press the Test button in Activations. This will validate that you've granted the appropriate credentials. Once you've got a checkmark for all four steps, you're good to go!

🗃Accessing Google Sheets and Google Drive tables in BigQuery

BigQuery supports External Tables which allows Google Sheets and tabular data in Google Drive to appear as tables in BigQuery. In order for Activations to access these resources, it must be given explicit access to the Google Sheet or Google Drive document.

1. First, you'll need the Activations service account's email address for your specific connection. You can see that in the Sources tab. It's of the form census-[LONG ID]@sutrolabs-giza-production.iam.gserviceaccount.com
2. Next, in Google Drive, click Share and give that email address permission to View the contents of the document.

If Activations does not have view access to the document, you will see an error indicating that Activations does not have permission to access the underlying data for that table.

🗃Accessing views that depend on other projects in BigQuery

It's possible to create views in a BigQuery project that reference the tables and views present in other BigQuery projects. In order for Activations to access these types of views within your project, it must also be granted permissions in the other projects that contain the referenced tables and views. If you are using the default IAM policies that Activations recommends, you may run the following commands in your Google Cloud Shell in the Google Cloud Console, where:

• [new-project] is the name of the project where the referenced tables and views exist.
• [service-account-user] is the Activations service account's email address for the specific connection that contains the view you're trying to access. You can see that in the Sources tab. It's of the form census-[LONG ID]@sutrolabs-giza-production.iam.gserviceaccount.com

gcloud projects add-iam-policy-binding [new-project] \
  --member serviceAccount:[service-account-user] \
  --role roles/bigquery.dataViewer

gcloud projects add-iam-policy-binding [new-project] \
  --member serviceAccount:[service-account-user] \
  --role roles/bigquery.user

Google BigQuery permissions are recursive. If the referenced view in the new project also references tables and views in other projects, you may need to repeat the above steps for those other projects until Activations has the ability to access the ultimate source of a given view.

VPC Service Controls and IP Restrictions

While BigQuery itself doesn't support IP allow lists, you can use VPC Service Controls to wrap your BigQuery instance and limit access. You can find Activations' set of IP address for your region in Network Access Controls.

When using VPC Service Controls, you will also need to allow BigQuery unloads to the Activations GCP bucket. To do that, you'll need to add gs://sutrolabs-giza-unloads-production in the allow list for BigQuery unloads.

Need help connecting to BigQuery?

Contact Support.
